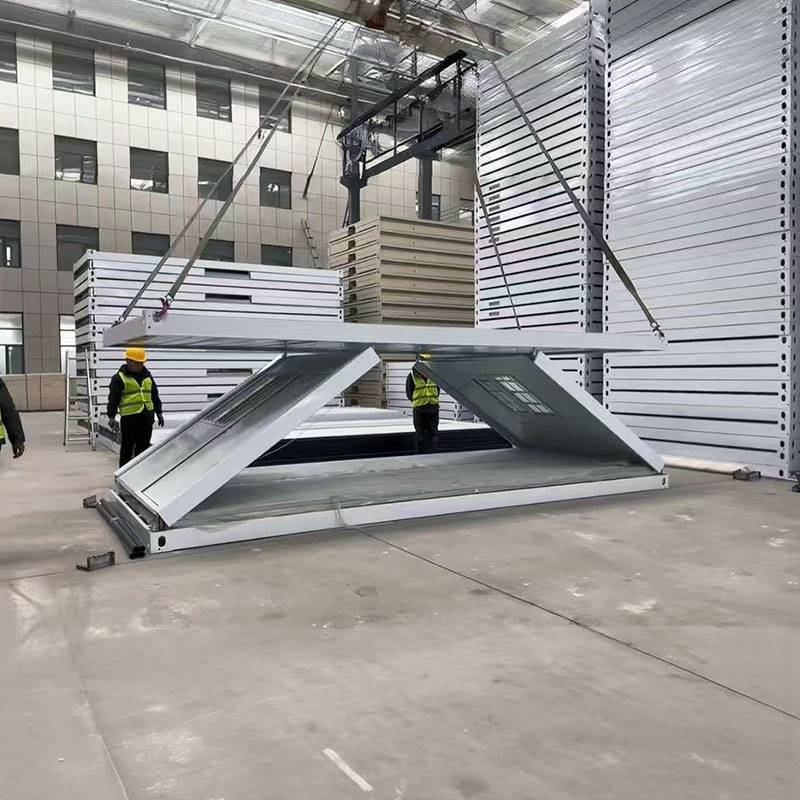

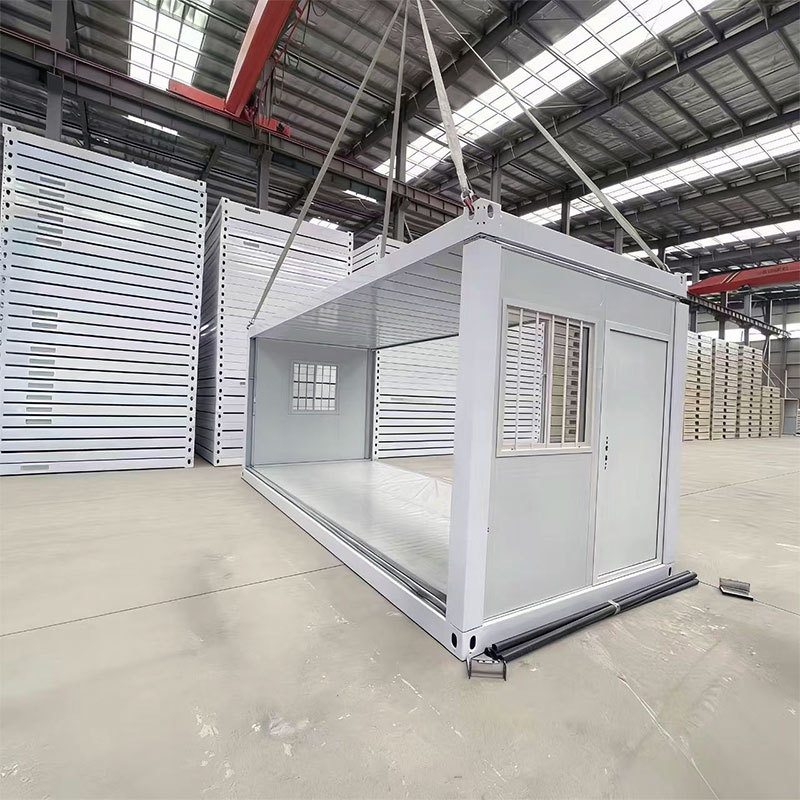

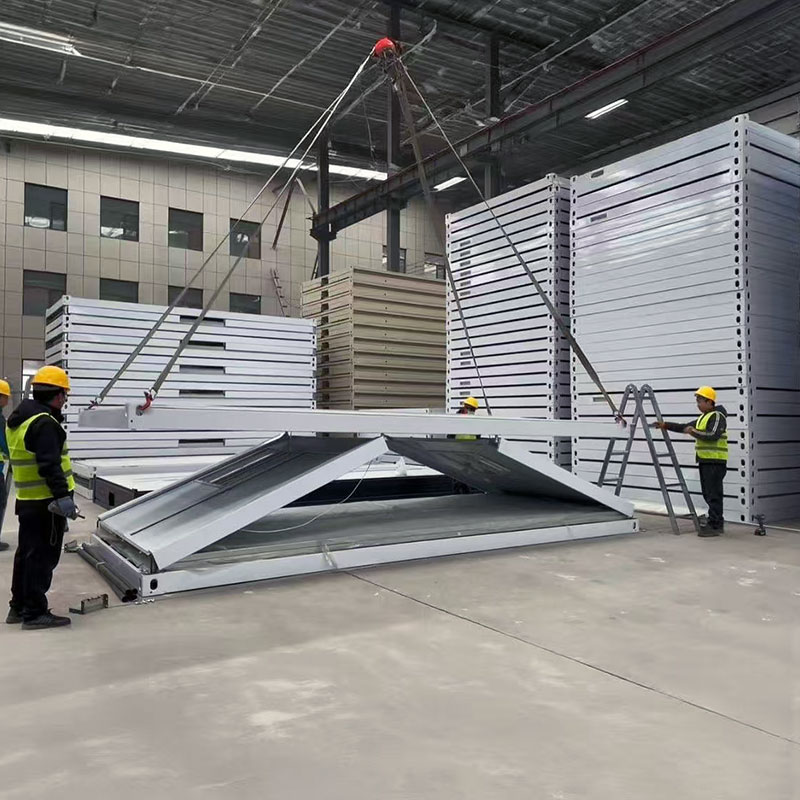

Z-Type Folding House feature lightweight design, industrial integration and rapid deployment, redefining temporary and movable buildings.
The product has the advantages of foldable storage, convenient transportation, fast assembly, safety, durability, environmental protection and recyclability.
Widely used in construction offices, staff dormitories, emergency shelters, tourism homestays, commercial exhibition halls and other scenarios.

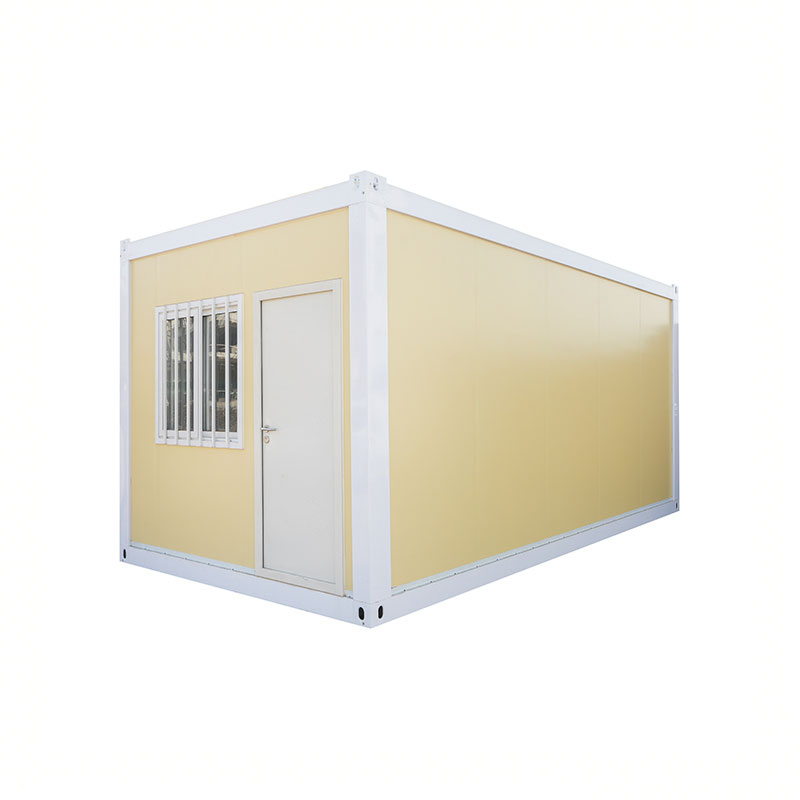

Unfolded dimensions | 5800*2450*2630mm |

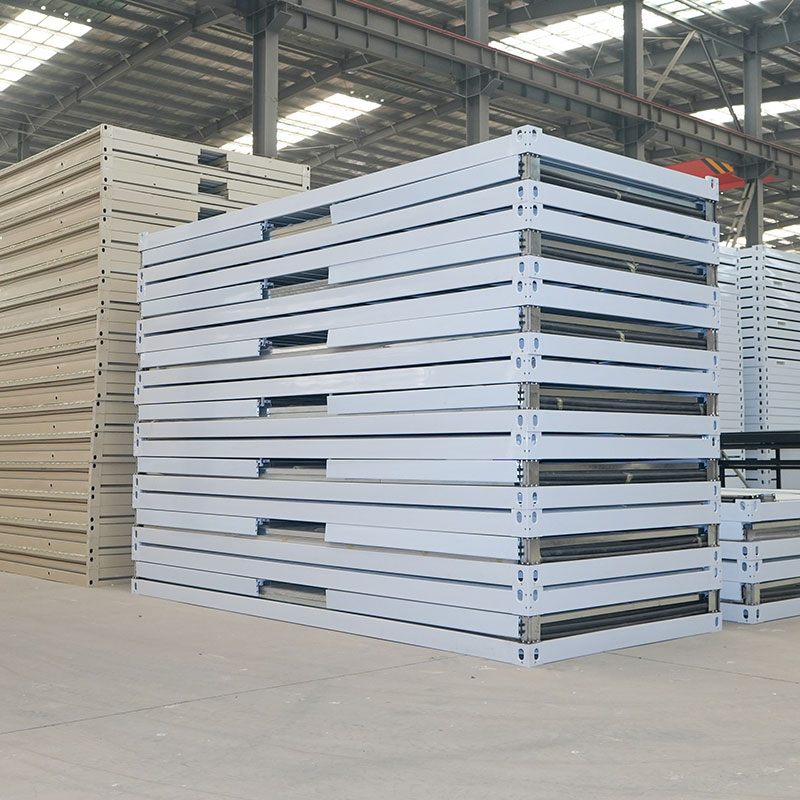

Folded state | 5800*2450*560mm |
Number | Module | Module | Constituent parts | Quantity | Unit |
1 | Main Frame | Top Frame | 160mm, top side beams 5480-2 pieces, top cross beams 2130-2 pieces, purlins 40x60 square tubes-5 pieces, 20x20 square tubes-2 pieces, 30x30 square tubes-1 piece, explosion-proof junction box 1 set. | 1 | set |
2 | Bottom Frame | 160mm, bottom side beams 5480-2 pieces, bottom cross beams 2130-2 pieces, 50*100 square tubes 9 pieces | 1 | set |
3 | Pillar | 2510*160*160mm | 4 | piece |
4 | Top/Bottom Corner | 160*160*160mm，160*160*200mm | 1 | set |
5 | Overhead rail | | 1 | set |
6 | Color-coated steel roofing | Color-coated steel sheet with 360° interlocking, 0.4mm thickness | 1 | set |
7 | Ceiling panel | V831 YX28-277-831,0.3mm | 1 | set |
8 | Top insulation | 75mm thick glass fiber wool 14kg/m³ + PE film | 1 | set |
9 | Drainage | PVC ¢50*2.0*2700 | 4 | piece |
10 | Floor | Ground | 18mm cement fiber board | 1 | set |
11 | 1.0mm vinyl flooring | 1 | set |
12 | Wall panels | Composite panel | 950 Double-Sided 0.3mm 50mm EPS Board,White H-Type Socket | 1 | set |
13 | Doors and windows | Door | Steel Door 970*1970mm | 1 | set |
14 | Window | PVC Sliding Window 920*1120mm - 2 units, single-pane glass, with screen, security grille (U-PVC) | 2 | set |
15 | Electrical Distribution | Light | LED Lights 36W*2 | 1 | set |
16 | Socket | 10A five-hole outlets* 3 16A* 1 |
17 | Switch | Single-key switch 1 Distribution box 1 |
18 | Wire | 3*1.5㎡ lighting circuits, 3*2.5㎡ outlets, 3*4㎡ air conditioner outlets, 3*6㎡ |
19 | Industrial outlet | 220V 50Hz 3P32A |
20 | Decoration | Inner angle of the column | 2280mm Color-Coated Steel Sheet | 4 | piece |
21 | Baseboard | | 1 | set |
22 | Accessories | Matching screws, self-drilling nails, floor nails, Phillips-head nails | 1 | Set |
