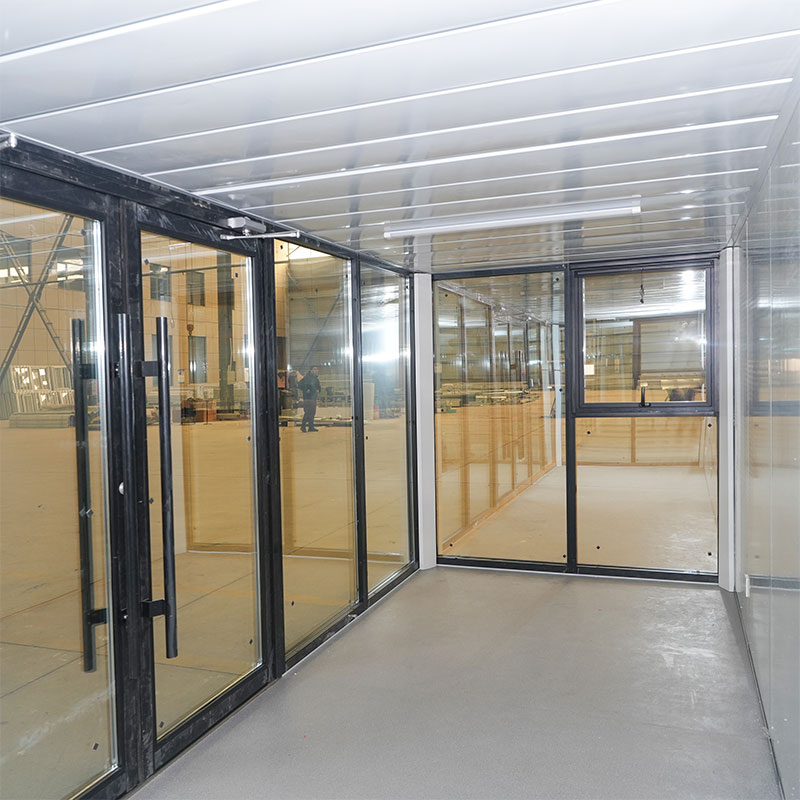

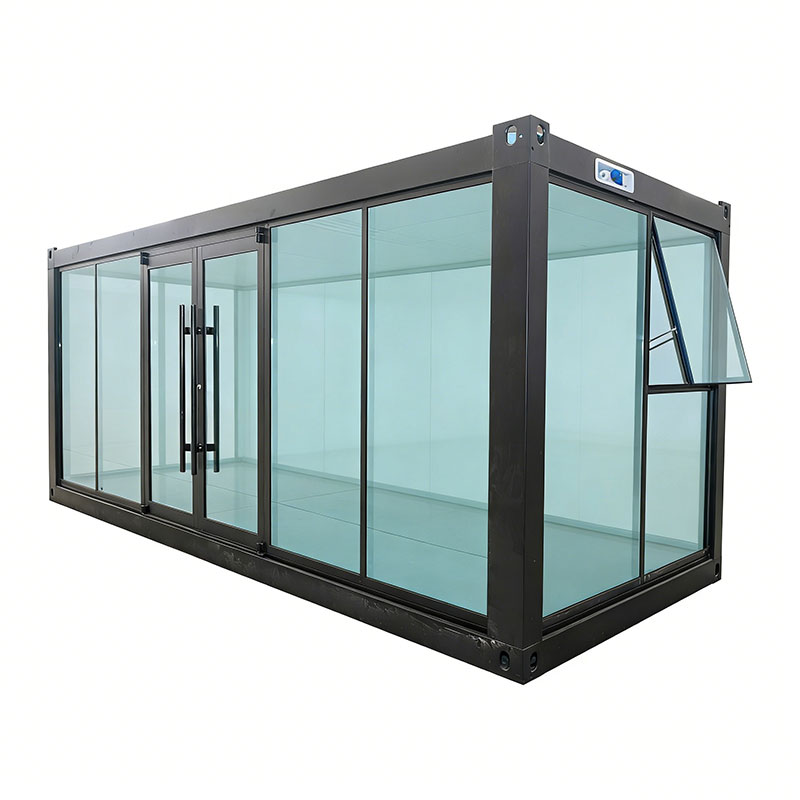

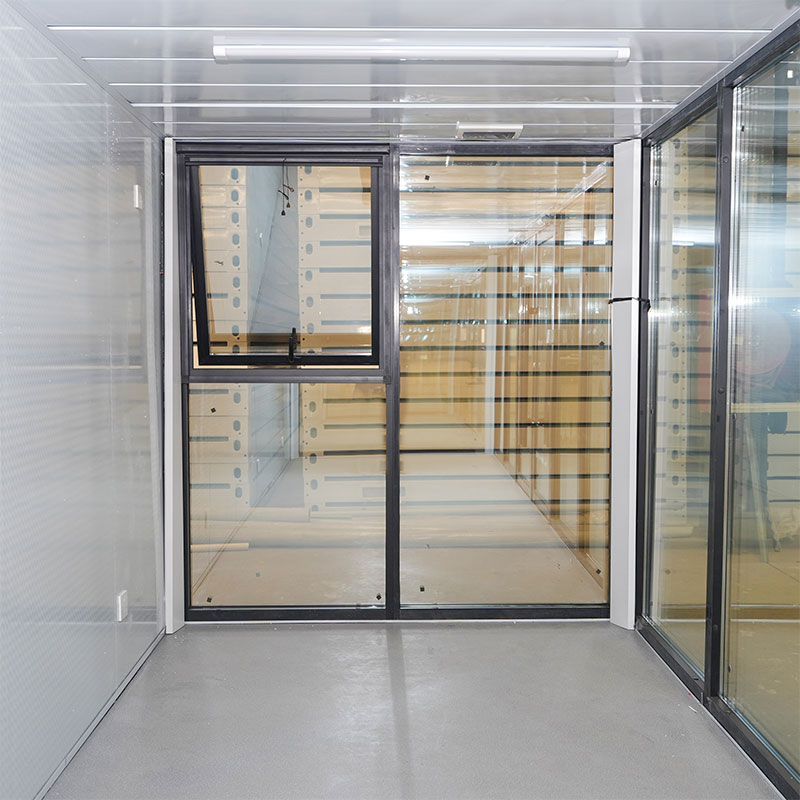

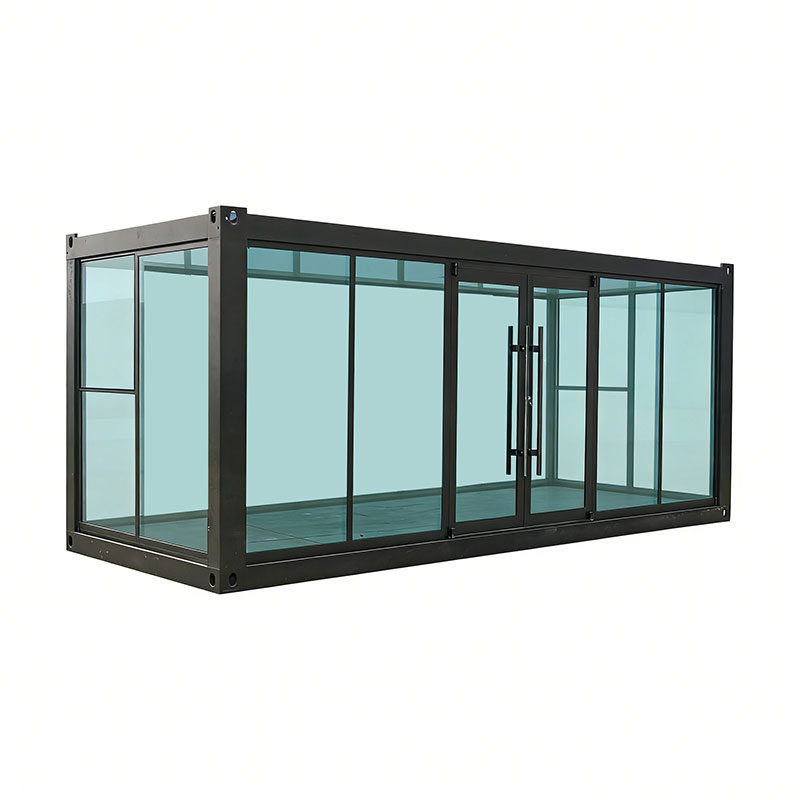

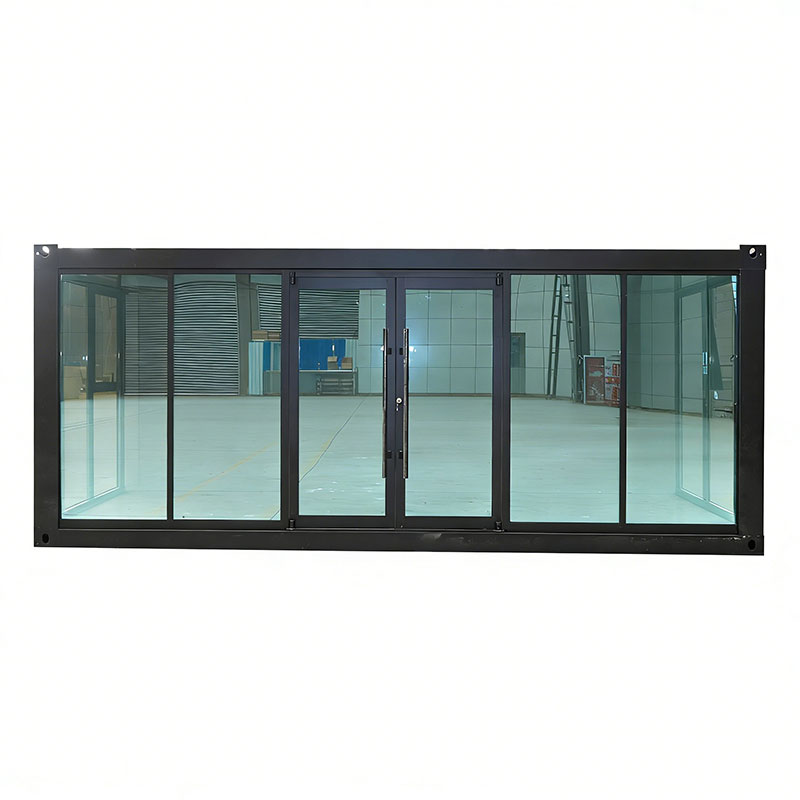

Glass curtain wall container offices are becoming increasingly popular in commercial and scenic environments.Their modern design and panoramic visibility offer strong visual appeal — but safety is often a primary concern.
Glass curtain wall units are not “all glass.”Behind the transparent exterior lies a reinforced steel framework that provides load-bearing capacity and structural stability.A properly engineered frame ensures:Wind resistanceLoad distributionLong-term structural integrity
The glass functions as an enclosure system, not the primary structural support.
High-quality curtain wall systems use tempered or laminated safety glass, which:Has higher impact resistance.Breaks into small, less harmful fragments if damaged.Withstands strong wind pressure.For regions with extreme weather, additional reinforcement can be applied.
Model | 5800*2480*2896mm(White electrostatic spray-baked paint) |
Serial | | Name | Constituent parts | Quantity | Unit |
1 | Main Frame | Top Frame | 170mm, top side beams 2.2mm*5380*2 pieces, top cross beams 2180*82 pieces, rafter 40*60 square tubes*5 pieces, 20*20 square tubes*2 pieces, 20*30 square tubes*1 piece, explosion-proof junction box 1 set. | 1 | Set |
2 | Bottom Frame | 160mm, bottom side beams 2.2mm*5380*2 pieces, bottom cross beams 2180*2 pieces, 50*100 square tubes*9 pieces | 1 | Set |
3 | Pillar | 2540*150*210*2.2mm | 4 | piece |
4 | Top/Bottom Corner | 150*210*160mm，150*210*200mm | 1 | Set |
5 | L-angle | | 1 | Set |
6 | Color-coated steel roofing | Color-coated steel sheet with 360° interlocking, 0.4mm thickness | 1 | Set |
7 | Ceiling panel | V831 YX28-277-831,0.3mm | 1 | Set |
8 | Top insulation | 75mm thick glass fiber wool 14kg/m³ + PE film | 1 | Set |
9 | Drainage | PVC ¢50*2.0*2700 | 4 | piece |
10 | Floor | Ground | 18mm cement fiber board | 1 | Set |
11 | 1.6mm vinyl flooring | 1 | Set |
12 | Wall panels | Composite panel | Glass curtain wall | 4 | Piece |
13 | Doors and windows | Steel Door 840*2035mm | 1 | Set |
14 | PVC Sliding Window 920*1120mm - 2 units, double-glazed with screen, security grille (U-PVC) | 2 | Set |
15 | Electrical Distribution | Light | LED Lights 36W*2 | 1 | Set |
16 | Socket | 10A five-hole outlets*3 16A* 1 |
17 | Switch | Single-key switch 1 Distribution box 1 |
18 | Wire | 3*1.5㎡ lighting circuits, 3*2.5㎡ outlets, 3*4㎡ air conditioner outlets, 3*6㎡ incoming lines |
19 | Industrial outlet | 220V 50Hz 3P32A |
20 | Decoration | Inner angle of the column | 2530mm Color-Coated Steel Sheet | 4 | piece |
21 | Bottom of the box | U-shaped sink | 1 | Set |
22 | Accessories | Matching screws, self-drilling nails, floor nails, Phillips-head nails | 1 | Set |
