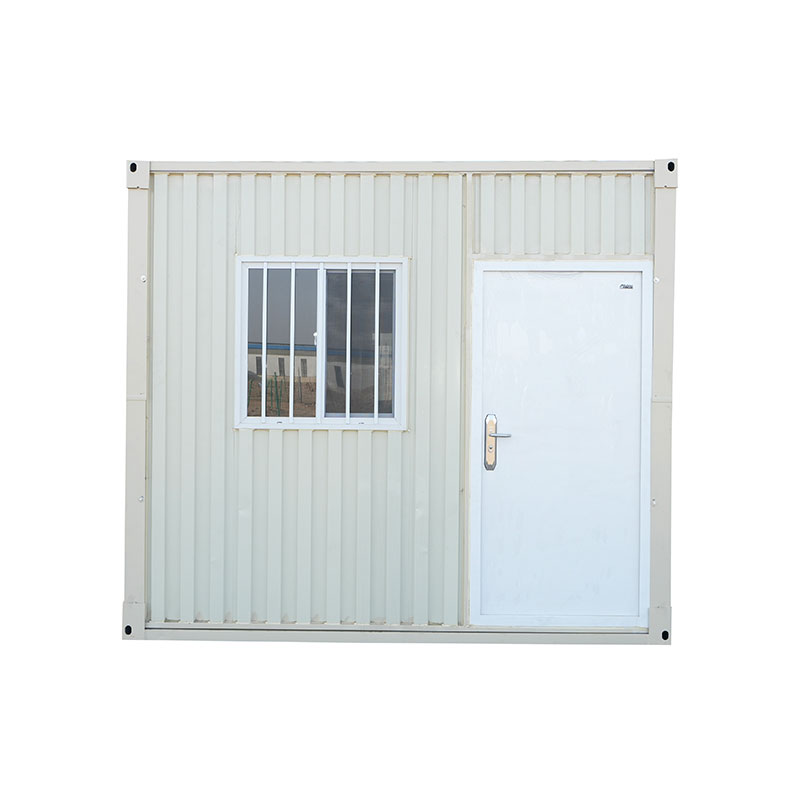

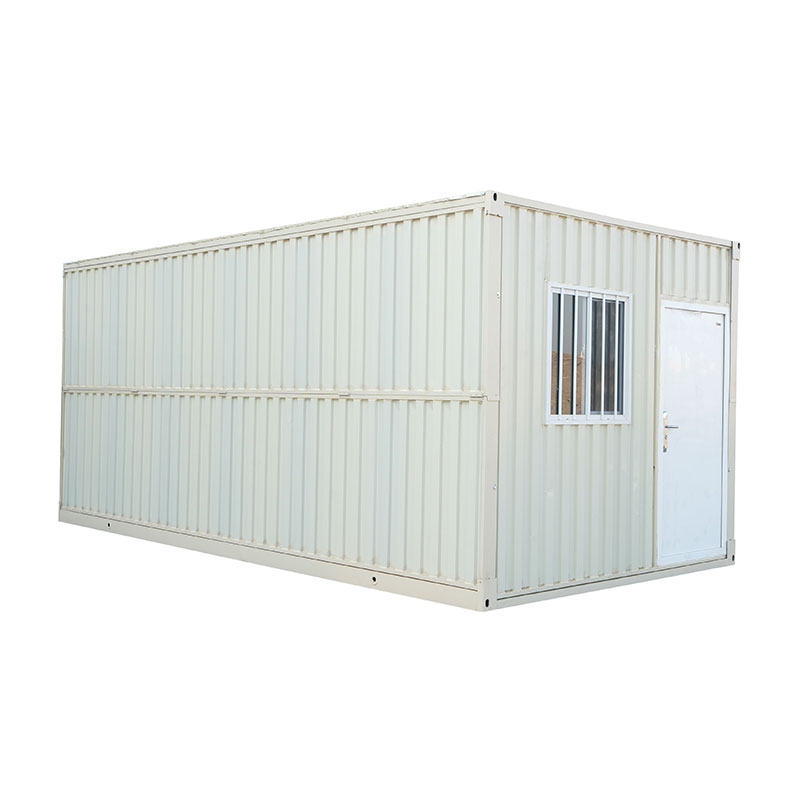

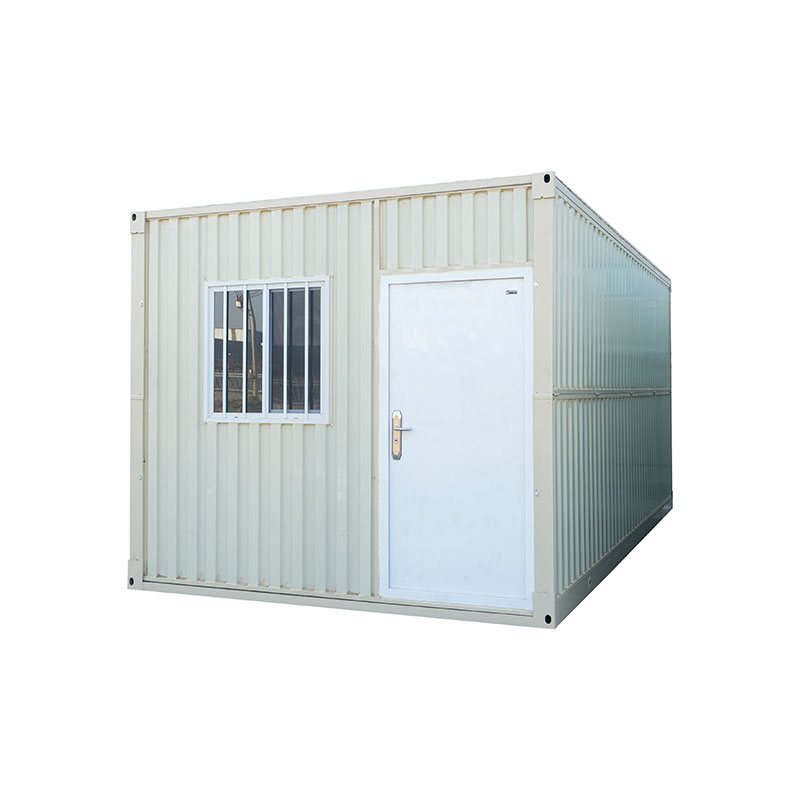

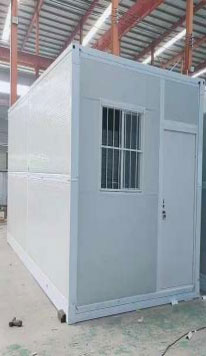

X-Type Folding House is a cost-effective, easy-transport, fast-install modular movable building.It features an integrated foldable structure, compact during transportation and ready for use once unfolded on site, greatly saving time and logistics cost.
It is widely used in construction sites, temporary dormitories, emergency shelters, field offices, simple storage and other scenarios, making it an ideal choice for economic temporary space.
Type | Specifications | Materials | Dimensions(mm) | Thickness(mm) | Unit | Quantity |
Basic Characteristics | External Dimensions(mm) | 5800*2480*2520 | ||||
Internal dimensions(mm) | 5680*2360*2360 | |||||
Folded state | 5800*2480*350 | |||||
Total mass(kg) | 990.00 | |||||
Framework Structure |  Top Structure | Q 235Rectangular Square Tube | 40*40 | 1.3 | piece | 5 |
Q 235Rectangular Square Tube | 60*80 | 1.2 | piece | 2 | ||
Q 235Rectangular Square Tube | 20*20 | 1.0 | piece | 4 | ||
High-Strength Hinge | piece | 10 | ||||
P-type tube | 50*70 | 1.3 | piece | 2 | ||
30*30angle iron | 5660 | 1.0 | piece | 2 | ||
2360 | 1.0 | piece | 2 | |||

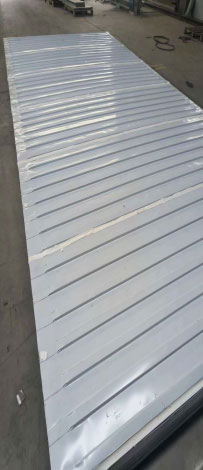

Corrugated Roofing Panel | 0.4 | block | 7 | |||
Glass fiber wool | 50mm*12kg/m³ | 50.0 | bolt | 2 | ||

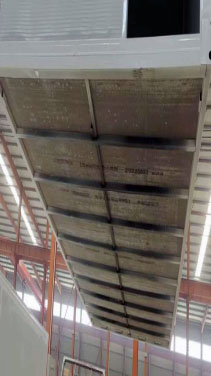

Ceiling panel | V831 | 0.2 | block | 3 | ||
Electrical System | Electrical wiring must be installed strictly in accordance with moisture-proof specifications. Indoor: 4² incoming lines, 2.5²GB standard flexible copper wiring for outlets, 1 x 20A circuit breaker, 1 x three-hole air conditioner outlet, 1 x five-hole single-pole outlet, 1 x five-hole outlet, 1 x LED light fixture. | |||||
 The long sides | Guard plate | 1270 | 1.3 | block | 4 | |
1250 | 1.3 | block | 4 | |||
P-type tube | 40*60 | 1.3 | Root | 8 | ||
U-type component | 50 | 1.2 | piece | 8 | ||
High-Strength Hinge | 10 | |||||

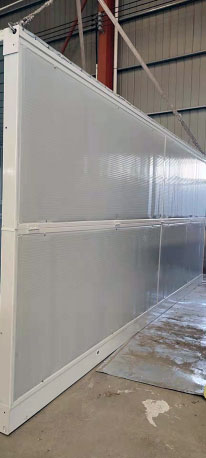

Wall panels | 50mm eps | 0.2 | block | 8 | ||
D-type seal strip | piece | 6 | ||||
 The short sides | P-type tube | 40*60 | 1.2 | 4 | ||
40*60 | 1.2 | piece | 4 | |||
Galvanized gutter | 2350 | 1.2 | piece | 1 | ||
975 | 1.2 | piece | 1 | |||
Wall panels | 50mm eps | 0.2 | block | 10 | ||
Galvanized angle | 50# | 1.0 | block | 20 | ||

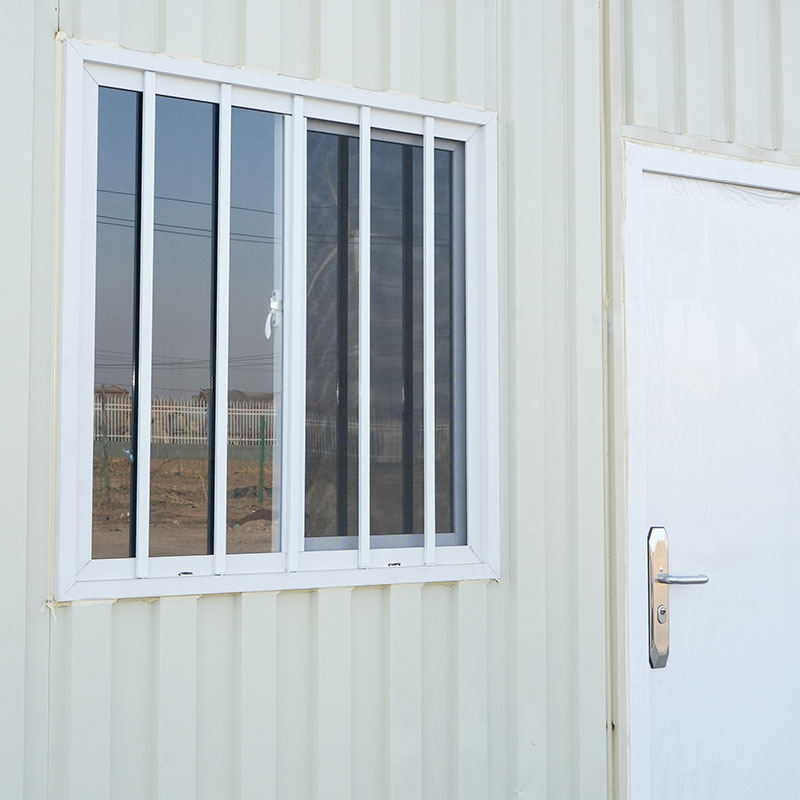

Window | 925*930 | piece | 2 | |||
Premium Steel Doors | 970mm*1970mm | piece | 1 | |||
Seal strip | 6000mm | piece | 4 | |||
 Bottom Structure | Bottom beam | 60*120 | 1.3 | Root | 2 | |
Rafter | 60*60 | 1.2 | Root | 2 | ||
High-Strength Hinge | piece | 10 | ||||
Q 235B Rectangular Square Tube | 40*40 | 1.2 | piece | 9 | ||
Magnesium Oxide Flooring | 15 | block | 5 | |||
Hanging board | block | 8 | ||||
Overall Frame Coating | Electrostatic Powder Coating / Plain Powder Coating | |||||
