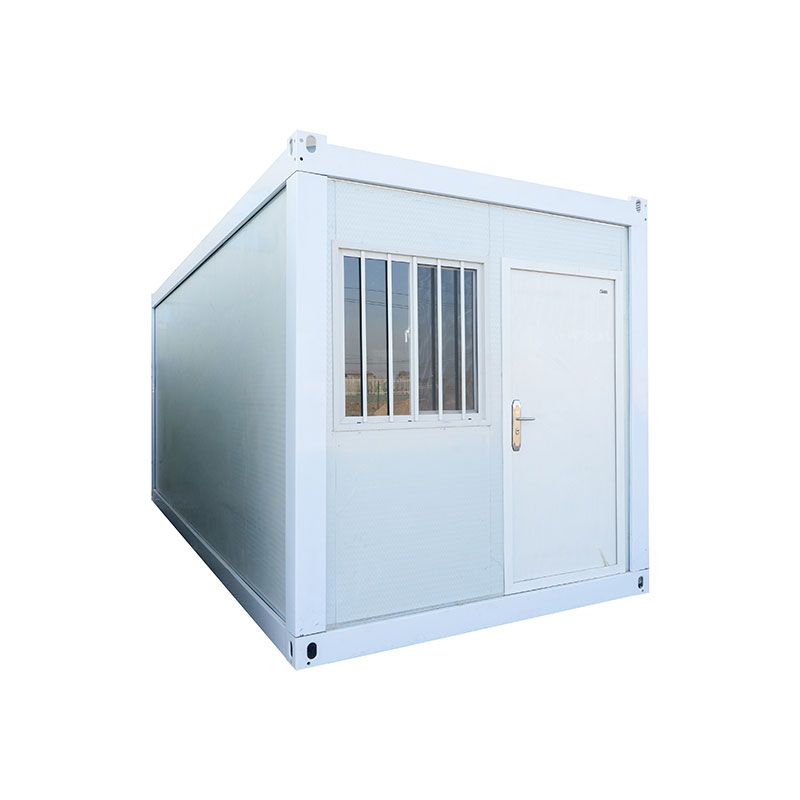

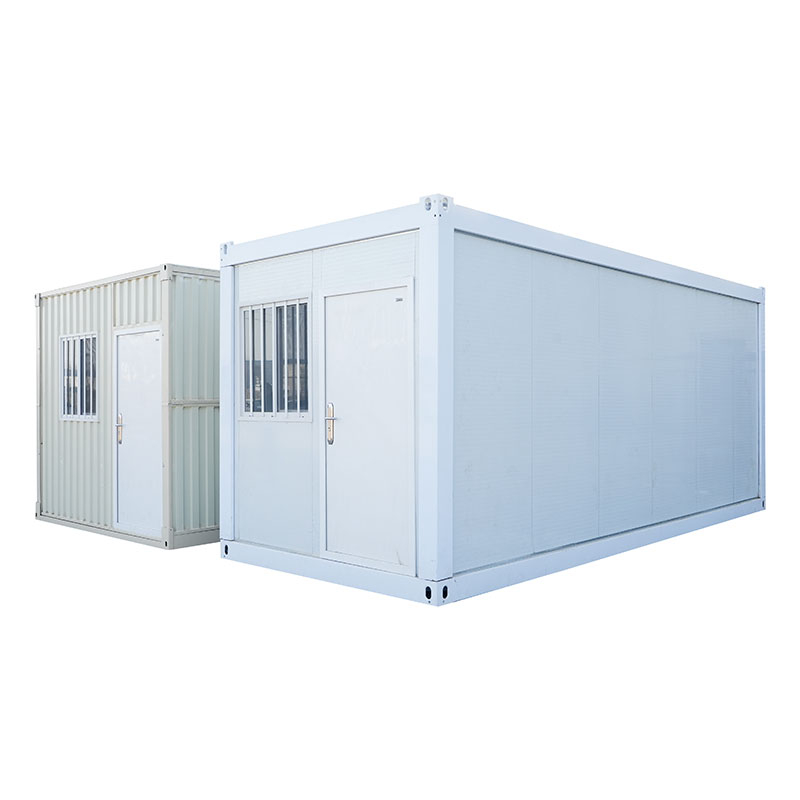

Packing Box is a classic and mature modular temporary building solution, featuring strong structure, convenient installation, flexible combination and recyclability.
It can be disassembled and reused for many times, greatly reducing the overall cost, making it a classic and optimal choice for engineering construction and temporary space.

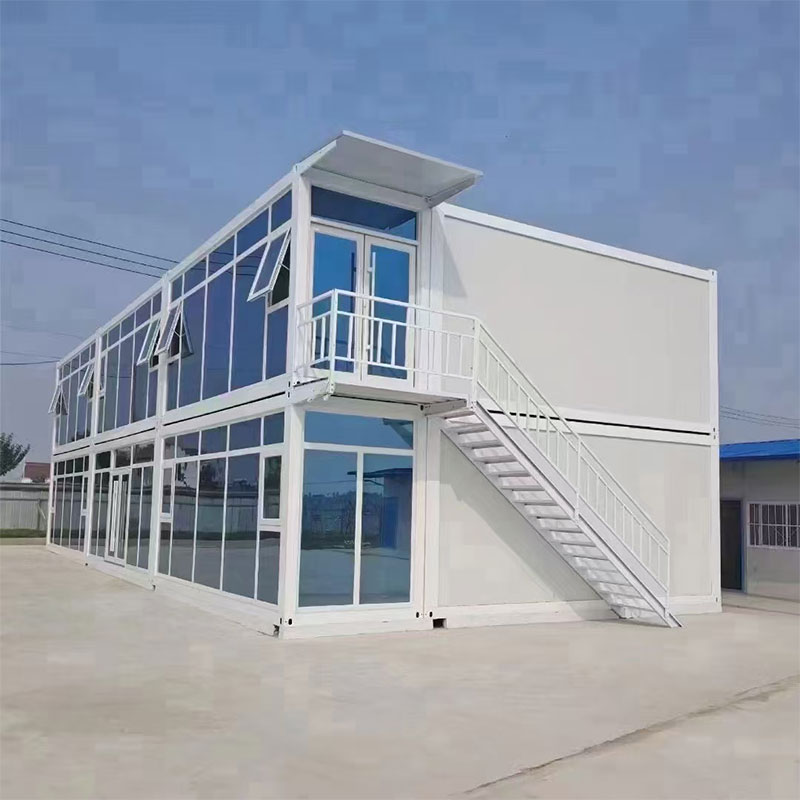

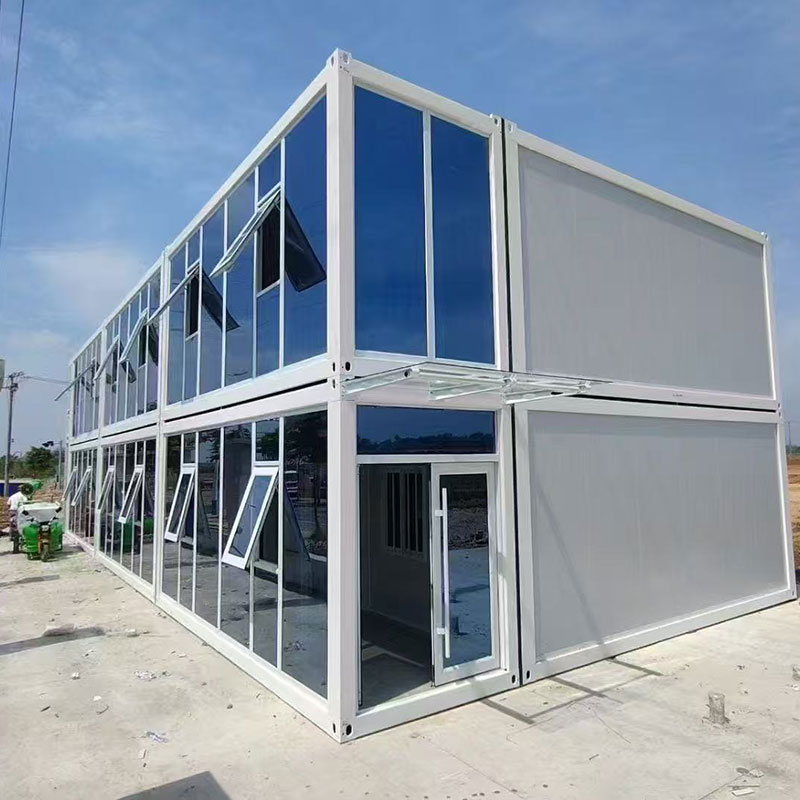

Suitable for temporary construction sites, dormitory offices, emergency shelters, outdoor camps, commercial spaces, municipal facilities, storage buildings, and cultural tourism projects.
Model | 5800*2480*2896mm(White electrostatic spray-baked paint) |
Serial | | Name | Constituent parts | Quantity | Unit |
1 | Main Frame | Top Frame | 170mm, top side beams 2.2mm*5380*2 pieces, top cross beams 2180*82 pieces, rafter 40*60 square tubes*5 pieces, 20*20 square tubes*2 pieces, 20*30 square tubes*1 piece, explosion-proof junction box 1 set. | 1 | Set |
2 | Bottom Frame | 160mm, bottom side beams 2.2mm*5380*2 pieces, bottom cross beams 2180*2 pieces, 50*100 square tubes*9 pieces | 1 | Set |
3 | Pillar | 2540*150*210*2.2mm | 4 | piece |
4 | Top/Bottom Corner | 150*210*160mm，150*210*200mm | 1 | Set |
5 | L-angle | | 1 | Set |
6 | Color-coated steel roofing | Color-coated steel sheet with 360° interlocking, 0.4mm thickness | 1 | Set |
7 | Ceiling panel | V831 YX28-277-831,0.3mm | 1 | Set |
8 | Top insulation | 75mm thick glass fiber wool 14kg/m³ + PE film | 1 | Set |
9 | Drainage | PVC ¢50*2.0*2700 | 4 | piece |
10 | Floor | Ground | 18mm cement fiber board | 1 | Set |
11 | 1.6mm vinyl flooring | 1 | Set |
12 | Wall panels | Composite panel | 950 Double-sided 0.2mm 50mm EPS, density 10KG/m³, H-type socket with one side orange peel texture and one side smooth white, laminated | 15 | Piece |
13 | Doors and windows | Steel Door 840*2035mm | 1 | Set |

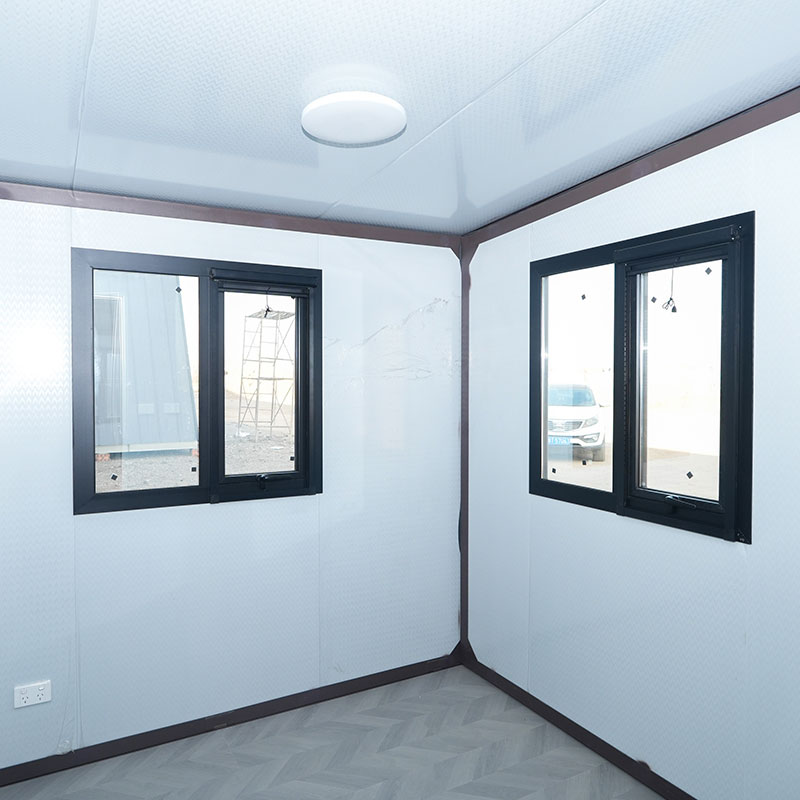

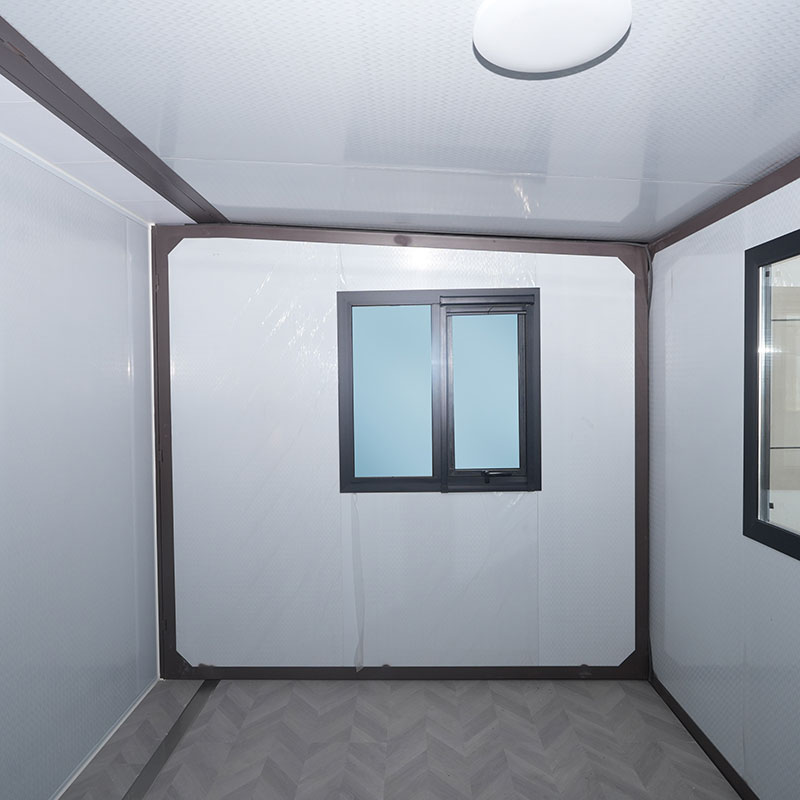

14 | PVC Sliding Window 920*1120mm - 2 units, double-glazed with screen, security grille (U-PVC) | 2 | Set |
15 | Electrical Distribution | Light | LED Lights 36W*2 | 1 | Set |
16 | Socket | 10A five-hole outlets*3 16A* 1 |
17 | Switch | Single-key switch 1 Distribution box 1 |
18 | Wire | 3*1.5㎡ lighting circuits, 3*2.5㎡ outlets, 3*4㎡ air conditioner outlets, 3*6㎡ incoming lines |
19 | Industrial outlet | 220V 50Hz 3P32A |
20 | Decoration | Inner angle of the column | 2530mm Color-Coated Steel Sheet | 4 | piece |
21 | Bottom of the box | U-shaped sink | 1 | Set |
22 | Accessories | Matching screws, self-drilling nails, floor nails, Phillips-head nails | 1 | Set |
