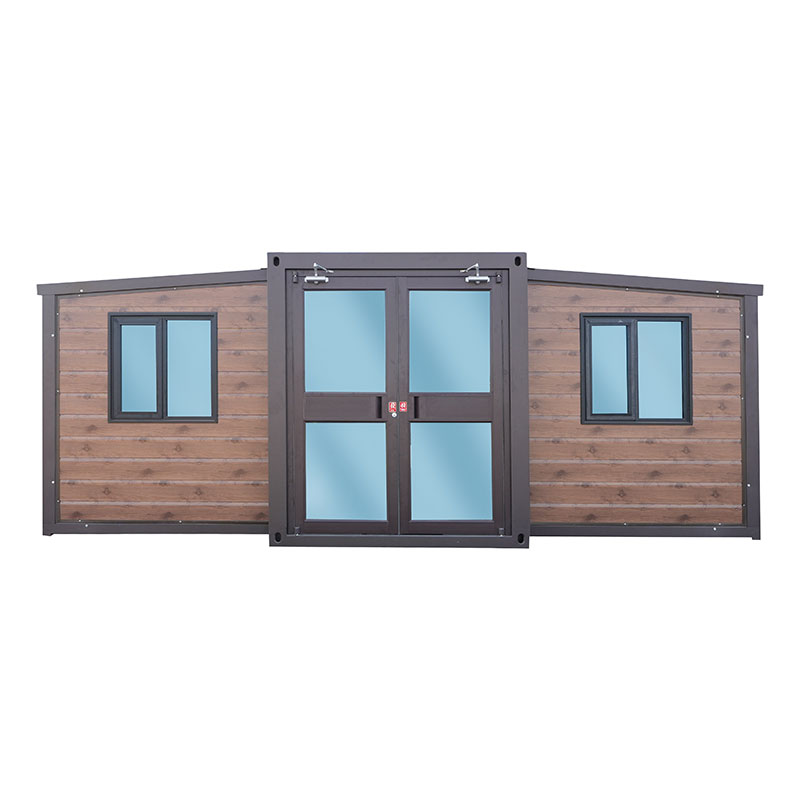

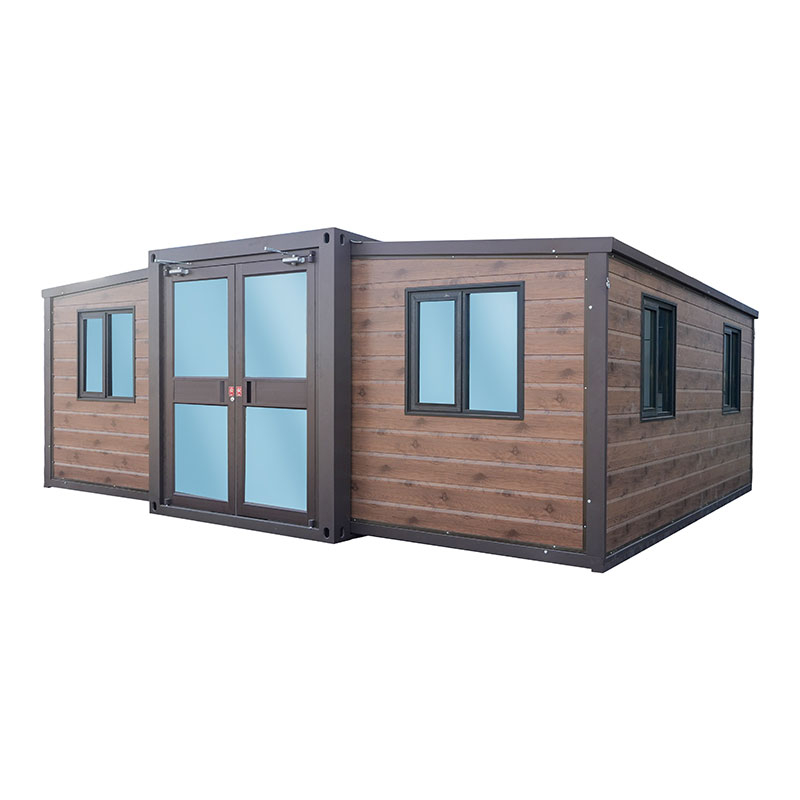

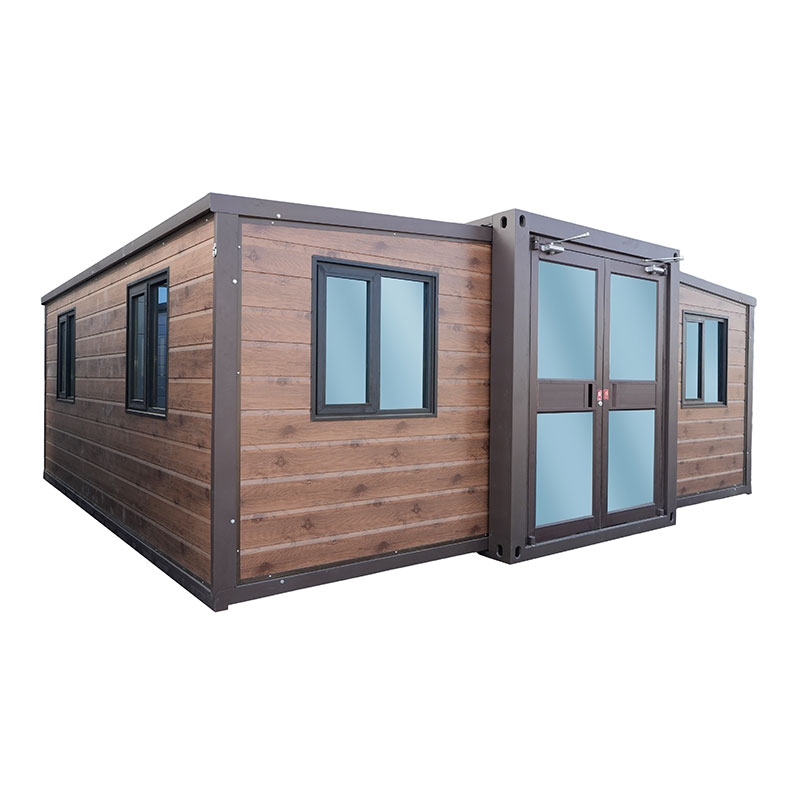

Wing Expansion House is a new generation of expandable modular space product, featuring super large space, integrated expansion, rapid deployment and flexible relocation.
Mobile large-space integrated building,adopting integrated steel structure and double-wing expansion design, it is a standard container during transportation and can be quickly expanded on site, greatly improving space utilization.
With pre-installed interior and functions, no complicated on-site construction is needed.It is widely used in temporary offices, high-quality accommodation, emergency command, field camps, and other scenarios.
Basic Information | Extended Dimensions（ mm） L*W*H | L5900*W6300*H2480 |
Internal Dimensions (mm) L*W*H | L5690*W6180*H2260 |
Folded Dimensions (mm) L*W*H | L5900*W2200*H2480 |
Weight (kg) | 2500 |
Framework Structure | Bottom Main Beam | Galvanized Square Tube 80*140*2.5MM Q235 |
Top main beam | Galvanized Square Tube 80*100*2.5MM Q235 |
Top/Main ridge/bottom purlin | Galvanized Square Tube 40*60*1.5MM Q235 |
Integrated Column Hoist | Galvanized folded parts150*210*2.0MM Q235 |
Side bottom main beam | Galvanized Square Tube 80*80*1.5MM Q235 |
Side top main beam | Galvanized Square Tube 40*80*1.5MM Q235 |
Side bottom purlin | Galvanized Square Tube 40*60*1.5MM Q235 |
The big side wall | Galvanized P Tube 35*80*1.2MM Q235 |
The small side wall | Galvanized P Tube 35*80*1.2MM Q235 |
Hinge | Galvanized Heavy-Duty Hinges |
Frame color | Baked Enamel Finish White Frame (Customizable) |
Floor | intermediate floor | 18mm Glass Magnesium Board (asbestos-free) |
Flooring on both sides | 18mm Glass Magnesium Board (asbestos-free) |
PVC floor | Palm wood |

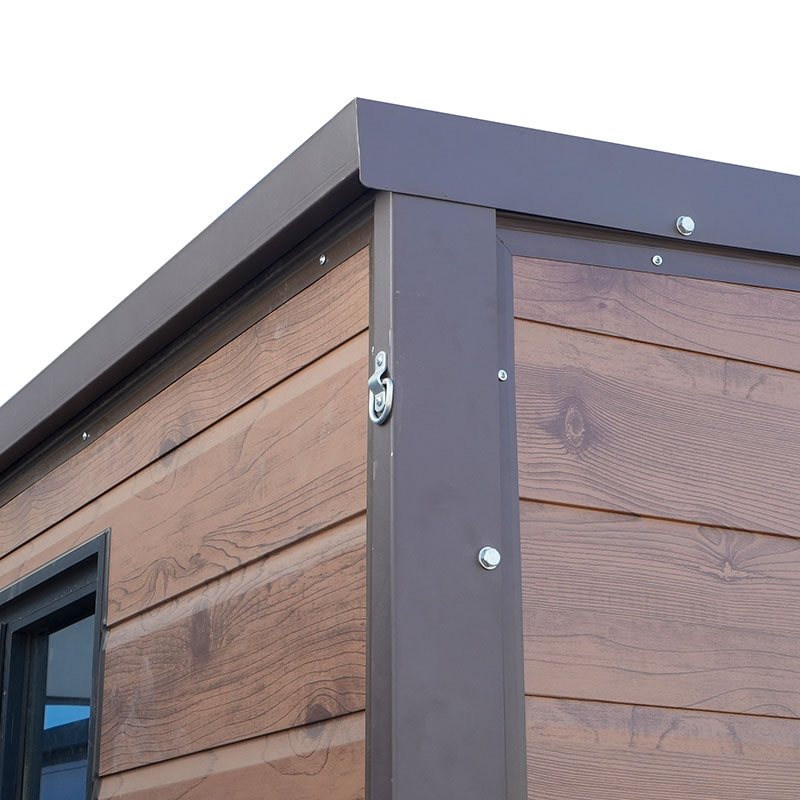

Insulated Wall | Wall panels | 70mm sandwich core panel, color-coated double-sided 0.25mm (yellow-based wood grain color) |
The standard core material is EPS |

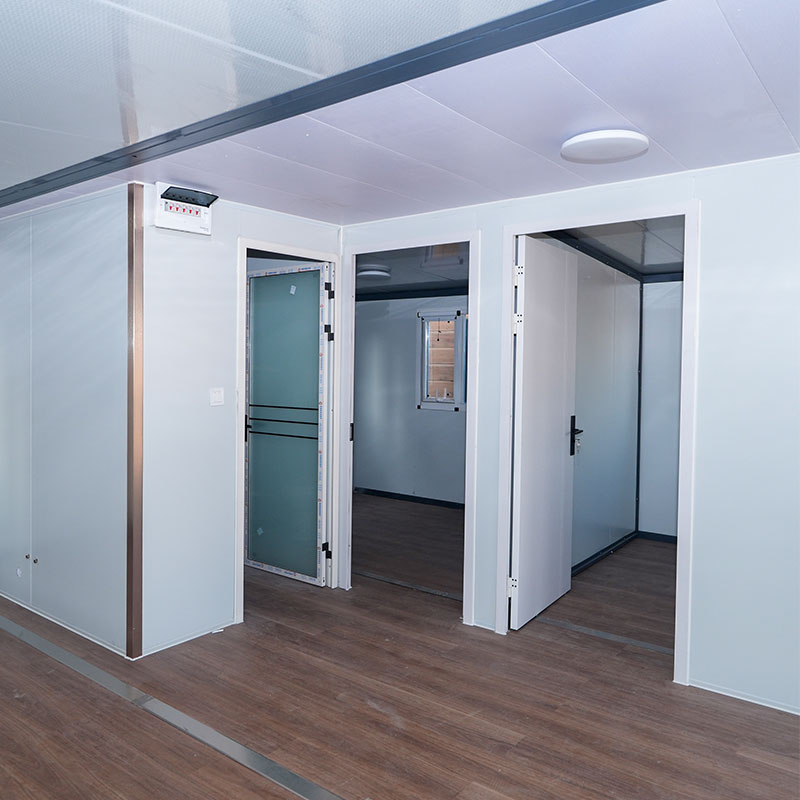

Partition | 50mm sandwich panel, color-coated steel substrate on both sides, 0.25mm insulation material as above |
Main top and side top | 50mm sandwich panel, color-coated steel substrate on both sides, 0.25mm insulation material as above |
Electrical Distribution | Parameters | Standard Australian-spec wiring:Incoming power: 6²-Air conditioner outlets: 4² -Standard outlets: 2.5² -Lighting circuits: 1.5² |
(Circuits can be customized to meet certification requirements for specific countries.) |
Circuit breaker system: 1 x 2P63A main circuit breaker, 1 x 2P32A RCD, 1 x 2P20A RCD, 1 x 2P16 RCD |
Lighting: 6 LED ceiling lights |
Outlets: Standard Australian-spec three-pin outlets (outlet standards can be customized per customer requirements) |
Door and Window Systems | Entrance door | Standard configuration: Four-panel aluminum thermal break door (double-glazed tempered glass with blue coating) outward-opening (white door frame) Dimensions: W1890*H2240 |
window | Standard aluminum alloy (double-glazed, tempered, blue-coated) sliding windows with stainless steel mesh screens (white window frames) 930*930*6 units |
