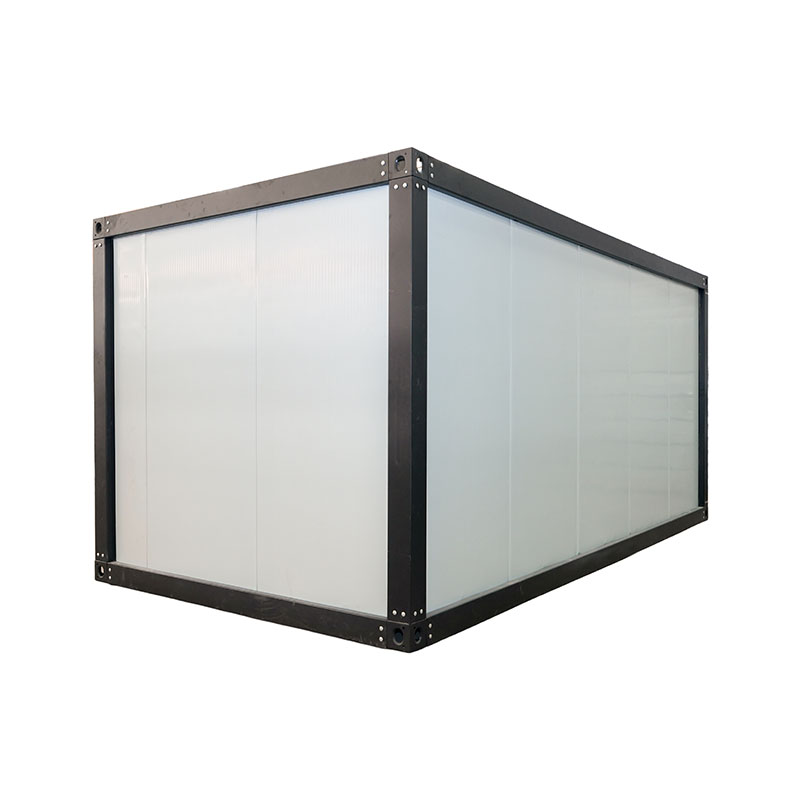

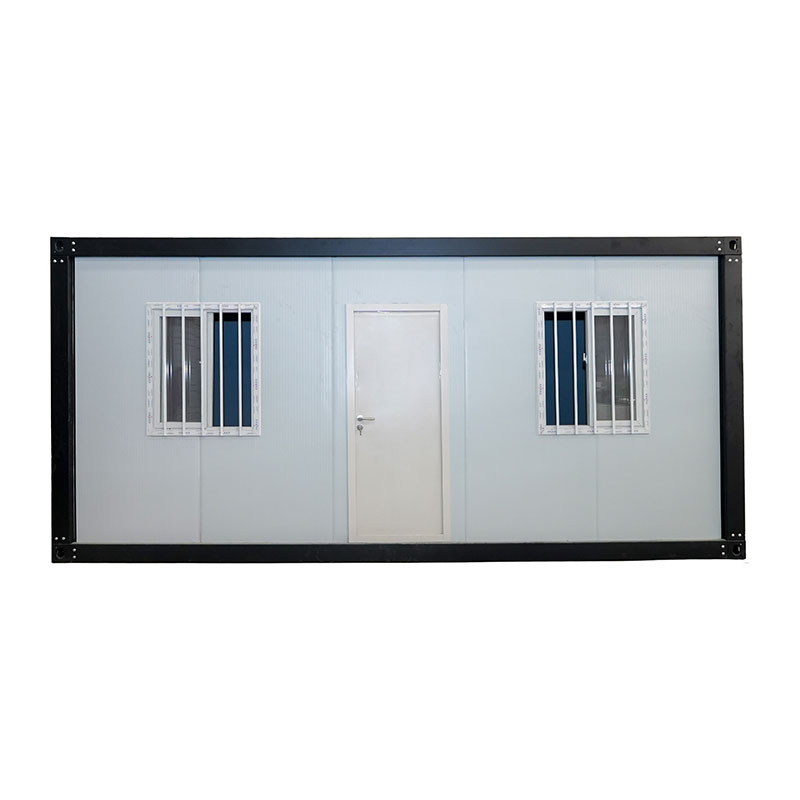

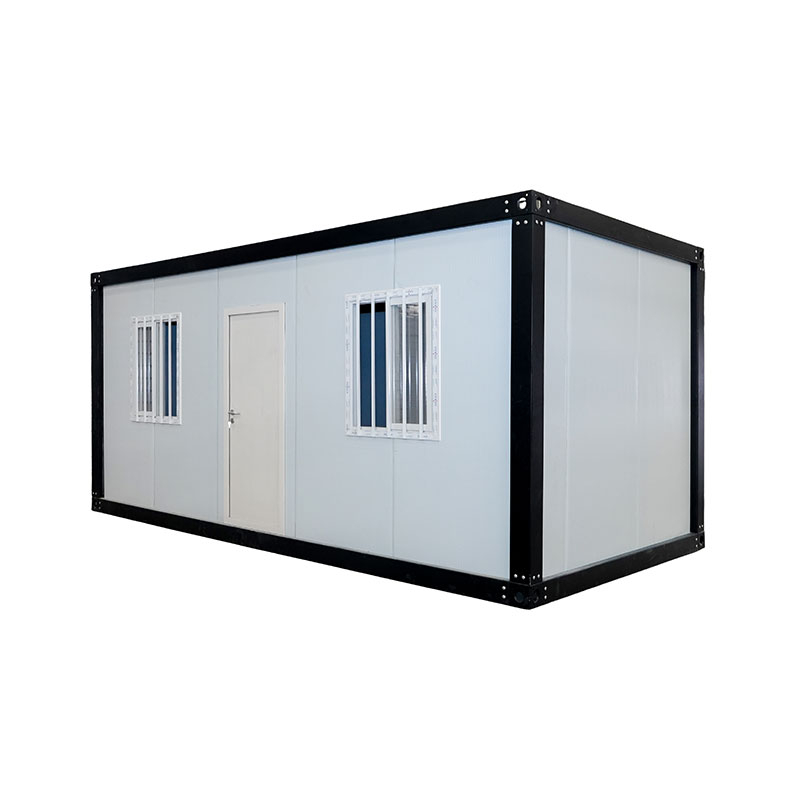

Easy-to-Assemble House with rapid construction, modular integration, structural stability, and flexible expansion as its core strengths.
Adopting high-strength galvanized steel frame and standardized components.No heavy machinery required, construction efficiency is much higher than traditional prefabricated buildings.
Construction site facilities, municipal public facilities, emergency and disaster relief, tourism and commerce, events and exhibitions, campus education, mining and energy camps, community property, especially in narrow terrain where large machinery cannot reach.
Specifications | 5950*3000*2800mm | |
Number | Module | Module | Constituent parts | Quantity | Unit |
1 | Main Frame | Top Frame | 160mm, top side beams 5630-2 pieces, top cross beams 2680-2 pieces, purlin 40*60*2880mm square tube 2 pieces, 40*60*1975mm square tube 6 pieces. U-shaped connectors | 1 | set |
2 | Bottom Frame | 160mm, top side beams 5630-2 pieces, top cross beams 2680-2 pieces, purlin 40*80*2970mm square tube 9 pieces, 40*40*1.0mm square tube 1 piece, U-shaped connectors | 1 | set |
3 | Pillar | 160*160*2480mm | 4 | piece |
4 | Top/Bottom Corner | 160*160mm*8 | 1 | set |
5 | Groove pressing plate | 2800mm*4,2600mm*2 | 1 | set |
6 | Carriage nut | M12*35mm*64 | 1 | set |
7 | Floor | Ground | 18mm cement fiber board | 1 | set |
8 | Wall panels | Composite panel | 950-2540, double-sided 0.2mm 50mm rock wool, density 50KG/m³, H-type socket double white, laminated. | 1 | set |
9 | Door | Door | Steel door 970*1970mm, mortise door | 1 | set |

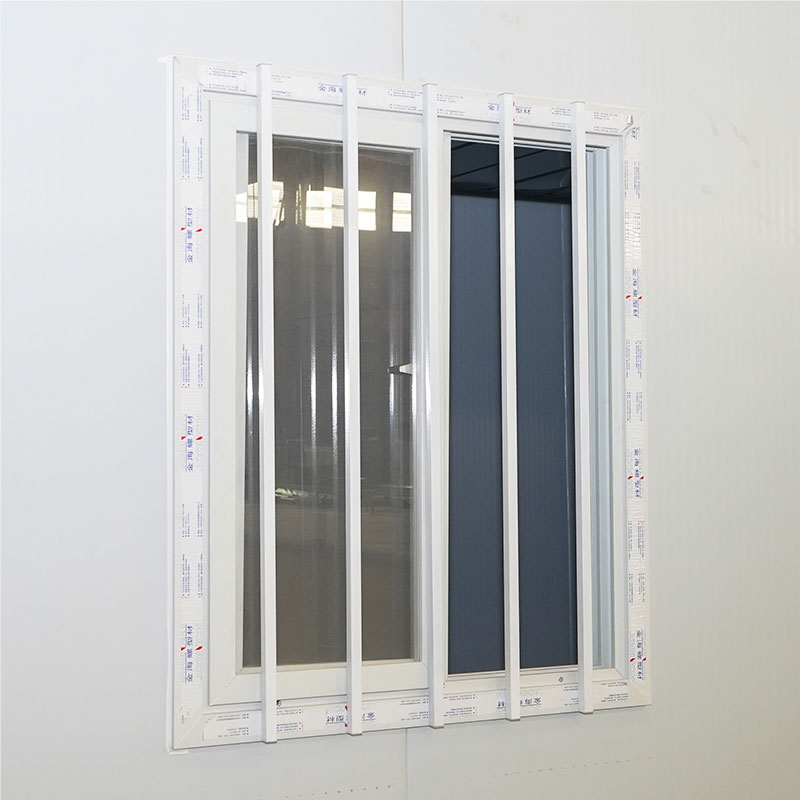

10 | window | window | PVC Sliding Window 920*1120mm - 2 units, single-pane glass, with screen, security grille (U-PVC) | 2 | set |
11 | Roof section | Color-coated steel roofing | Color-coated steel sheet 0.35mm | 1 | set |
12 | Ceiling panel | 0.25mm/v831 | 1 | set |
13 | Top insulation | 50mm glass fiber wool 14kg/m³ + PE film | 1 | set |
14 | Hardware | Rafter screws M10*80*18 pieces, clipboard nails 65 pieces, floor nails 50 pieces, 70 round-head nails 36 pieces, 25 self-tapping screws 60 pieces, structural adhesive*4 tubes, waterproof sealing tape 18 meters |
15 | Electrical Distribution | Light | LED Lights 36W*2 | 1 | set |
16 | Socket | 10A five-hole outlets* 3 16A* 1 |
17 | Switch | Single-key switch 1 Distribution box 1 |
18 | Wire | 3*1.5㎡ lighting circuits, 3*2.5㎡ outlets, 3*4㎡ air conditioner outlets, 3*6㎡ |
19 | Industrial outlet | 220V 50Hz 3P32A |
20 | Floor decoration | 2.0 Vinyl Flooring | | 1 | set |
